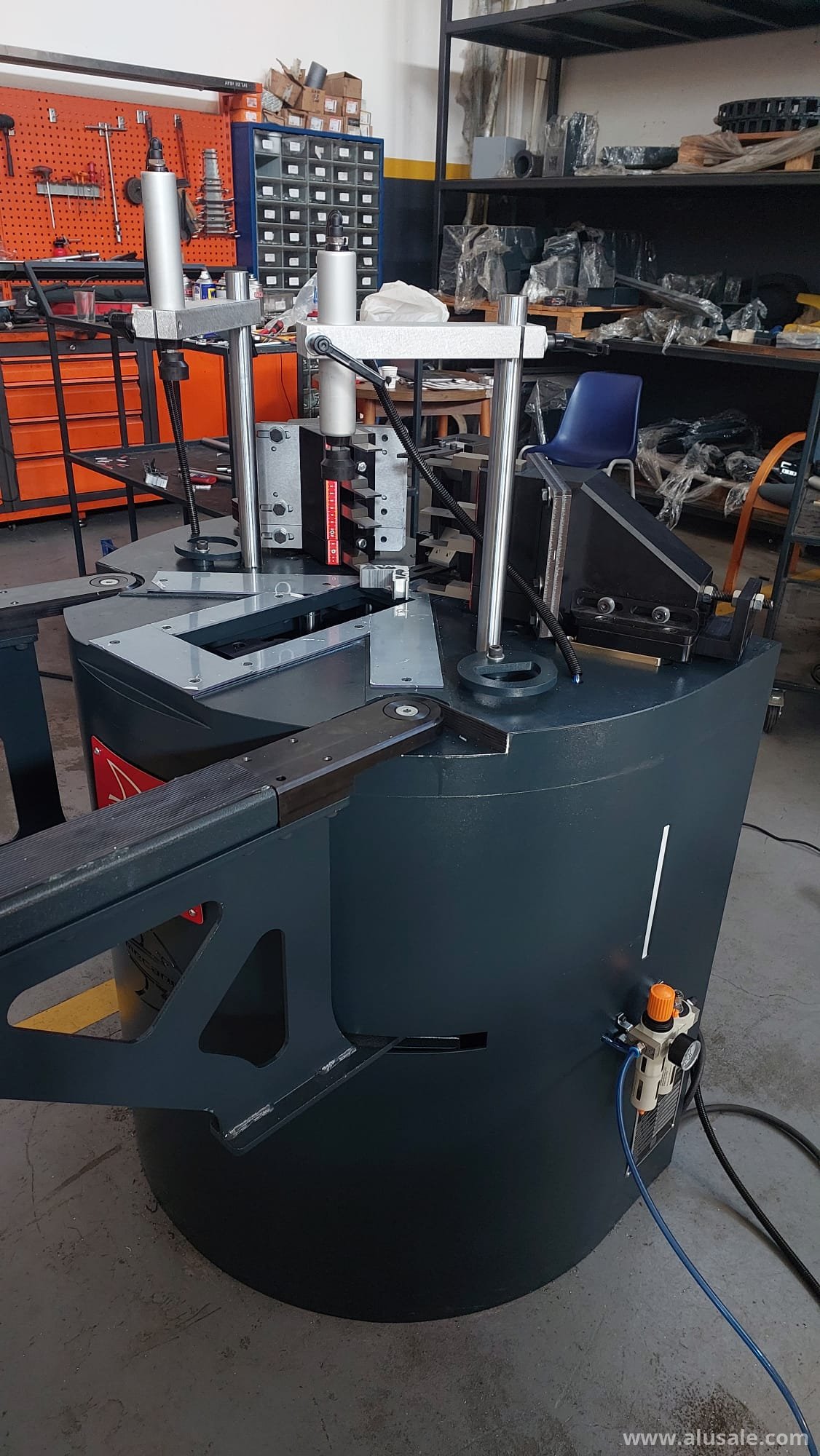

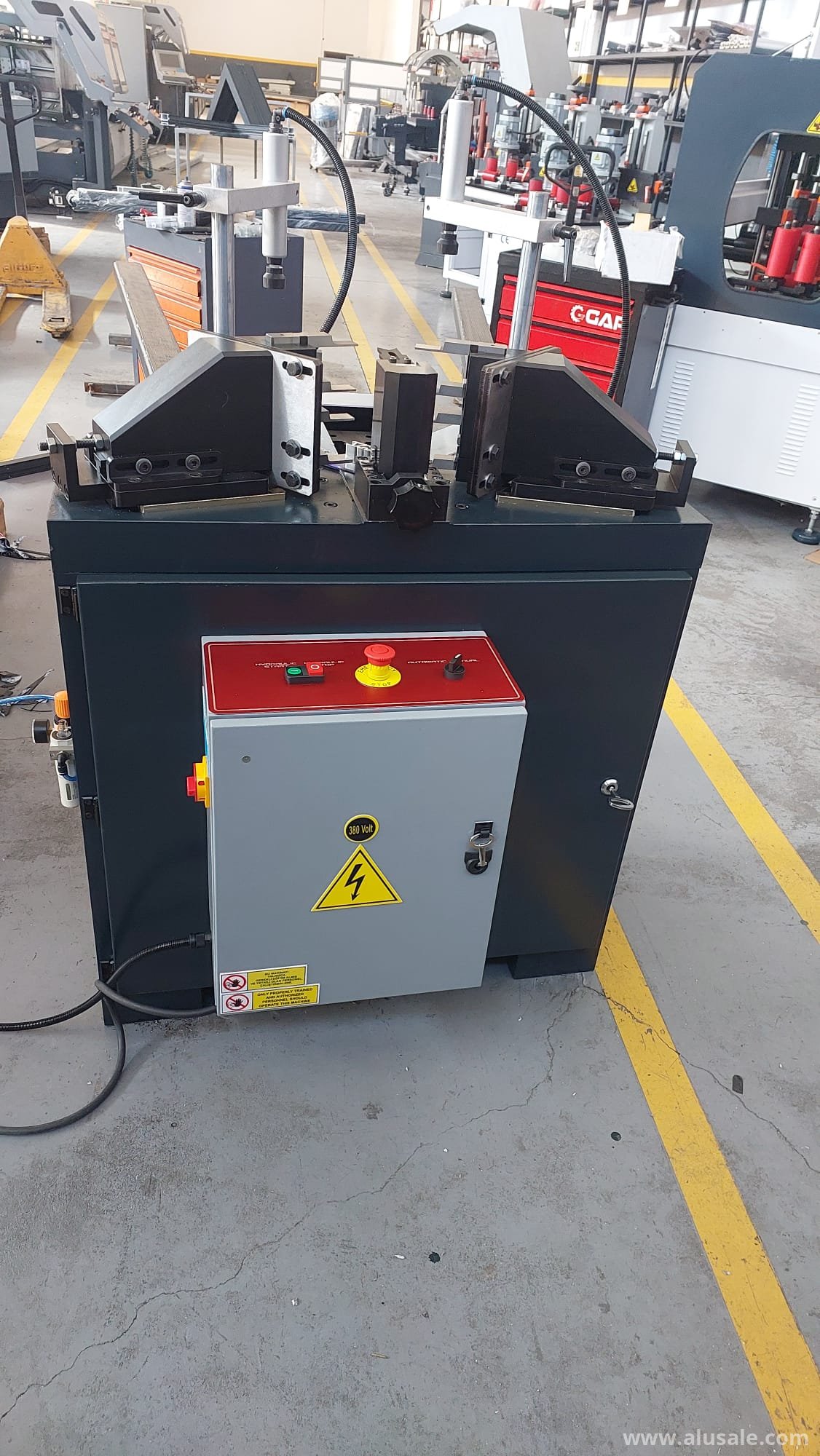

MPR 7000 ALUMINIUM CORNER CRIMPING MACHINE

Specially designed for modular aluminum panel profile series, large sectioned sliding doors and windows systems, MPR is able to crimp high and thick aluminum profile frames up to 200mm. It enables to produce perfect and stiff frame corners thanks to its PLC controlled and pressure-adjustable hydraulic crimping blocks together with inner supporting unit of the frames. Crimping blocks made in two pieces, upper part sliding on top of the lower part, enables to crimp non-semi surfaced profile contours by using the standard crimping knives. Inner supporting block is made in three separate parts which enable to support zig-zag shaped profiles enabling perfectly joint corners without any need to make special tooling. Hydraulically powered crimping head blocks with 100 Bar standard crimping pressure, eliminates the angular and dimensional production errors of doors and windows profiles.

     Machine Properties:

·        Electro welded mono-block machine body supplying maximum constructional stiffness

·        Max. Frame Height that can be put inside the machine: 300mm

·        Max. upper Crimping Knife height: 200mm

·        Double food pedal supplying simultaneous and perfect crimping quality

·        Pressing Power: Standard: 100 Bar (Adjustable between 0 - 150 Bar - max.)

·        Crimping Heads adjustable between : 25-60mm according to Corner Cleats' Grove size

·        Easily adjustable crimping heads with mili metric scale

·        Inner profile supporting unit with rising-Deeping and forward-backward motion (h:200mm)

·        4 set (8 pieces) crimping knives(thickness: 3, 5, 7, 10mm)

·        V-shaped inner supporting aluminum blocks with Allen nuts max. height: 90 mm

·        2 Pieces of Vertical Profile supporting Pneumatic Clamps
